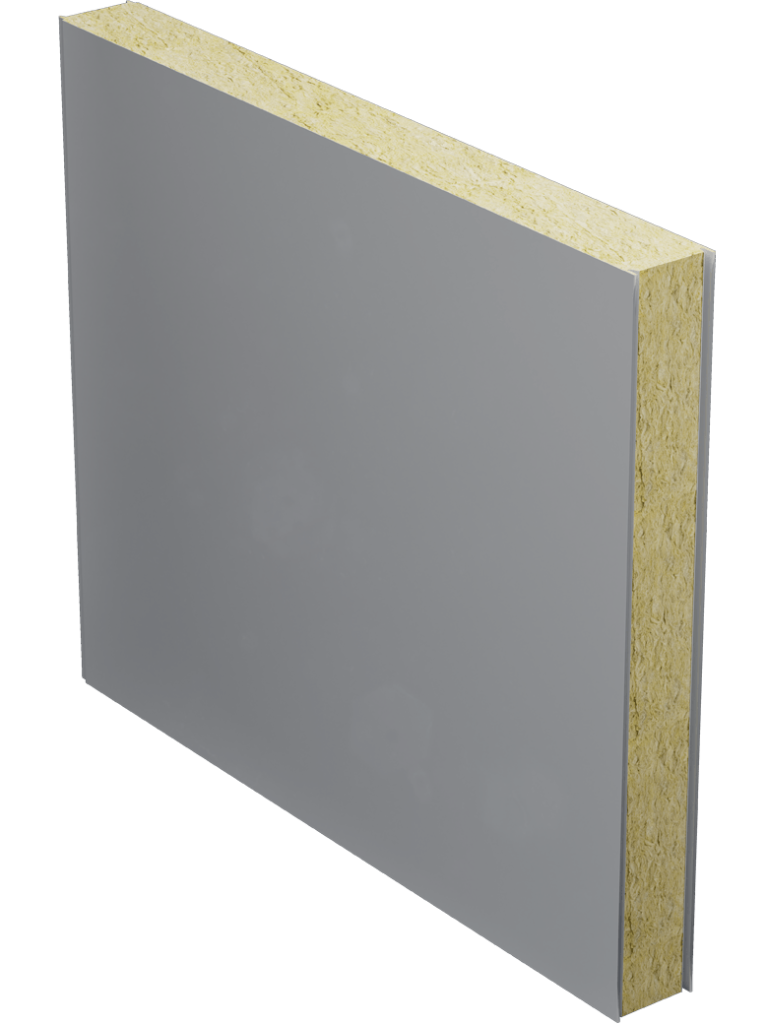

Lightweight fire rated non-combustible panels
Firestop non-combustible internal wall and ceiling panels deliver a quality, versatile and environmentally friendly solution for today’s built environment. They will meet the demands of fire resistance, sound reduction and thermal insulation and offer the winning combination of functionality, reliability and durability, whilst also supporting consistent and cost-effective construction. Typically used for industrial, logistics, data centres and commercial buildings, Firestop panels are suitable for use in the most demanding environments, such as the food processing or the pharmaceutical industry. Firestop is used both as a partition wall system mounted vertically or horizontally and in ceiling applications.
Facings & Profiles
- Facings
- Profiles
- Colours
Facings
Advantica® L Control (WFSL)
120 micron thick White Food Safe Laminate for internal hygienic areas.
Colorcoat® PE25 Polyester
Standard white 25 micron, painting system consisting of primer and polyester finish. Other colours upon request.
Advantica® PR (Primer)
7 micron coat of epoxy paint.
Colorcoat® Leathergrain
A 200 micron PVC paint system with leathergrain emboss, available in various colours.
Colorcoat® Prisma
Colorcoat® smooth 27 micron polyvinyl difluoride stoved fluorocarbon, available in various colours.
HPS200 ULTRA
Colorcoat® Scintilla, organic coated 200 microns Scintilla, emboss of 40 microns. Available in various colours.
GreenCoat® Mica
GreenCoat® Mica has a high environmental position as SSAB have replaced a substantial amount of the traditional fossil oil content with rapeseed oil.
In addition to the extensive colour range offering and subject to a minimum order value, we have the capability to ‘colour up’ any steel to meet your corporate colour requirements..
Castellation, Micro Rib & V-Rib Panel Profiles

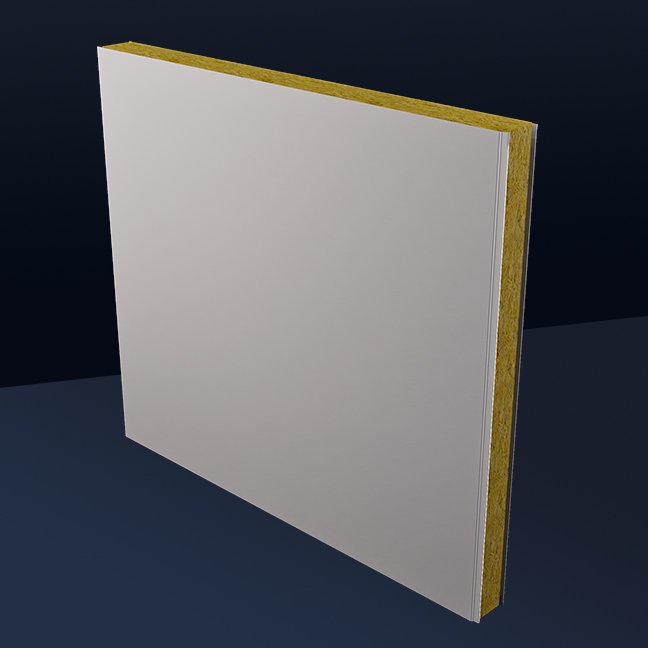

Flat
Laminated panel produces a much flatter surface than other manufacturing methods, but ‘optical’ flatness is not assured; some shadowing might be evident in certain lighting situations.
V-Rib
Pitch 200mm – 5 per panel
Castellation
Pitch 100mm
Micro Rib
Pitch 300mm – 1 side only
Diagrams not to scale. At Isoclad, we understand that panelling can often be a complex job that requires a number of different materials and panel profiles. Our range of panel profiles allows for great flexibility when it comes to construction; from castellation panels to V-Rib and flat panels, we aim to stock the widest range possible.
Colours

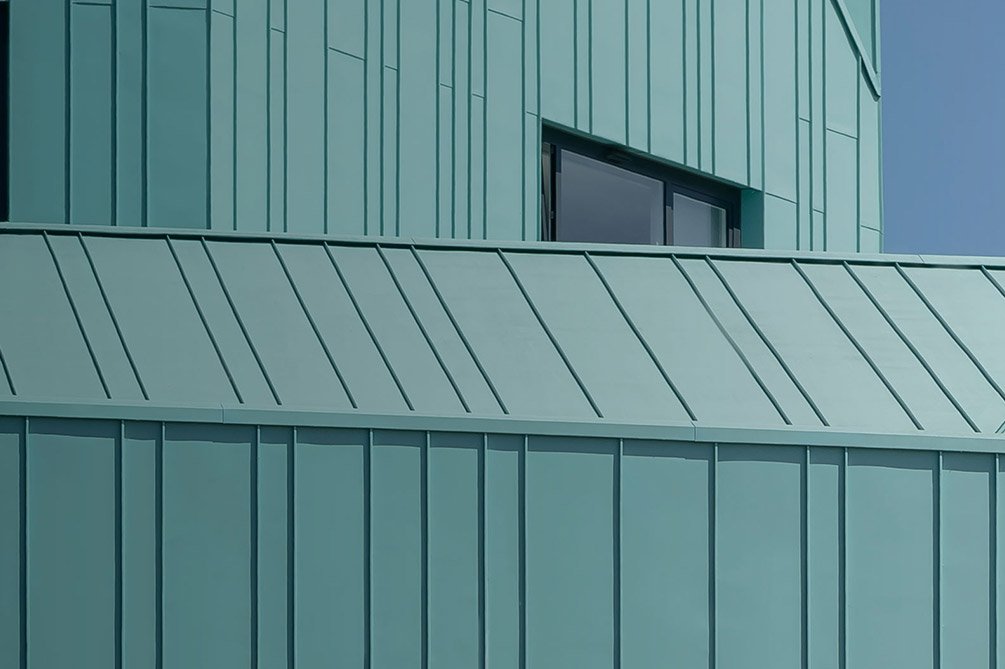

SSAB GreenCoat®
Natura
Bio-based coating made with Swedish rapeseed oil (bio-based technology)
Roofing Façade
Energy Efficient
Reflects the sun and lowers energy requirements for cooling inside
Roofing Façade
Outdoor Durability
Best colour and closs retention over years
Roofing Façade
Colour Repeatability
The tightest tolerances for perfect matches from delivery to delivery
Roofing Façade
Enhanced Formability
Specialised products for metal roofers
Roofing
Anti-graffiti
Maximum resistance to dirt, felt-tip pens or spray paint
Façade
Elemental
SSAB’s classic solutions for standard profiles
Roofing Façade
For more information, please visit the SSAB website.
TATA Steel Colorcoat® LG
White BS 00E55
Goosewing Grey BS 10A05
Honesty BS 10C31
Mushroom BS 10B19
Moorland Green BS 12B21
Merlin Grey BS 18B25
Juniper Green BS 12B29
Anthracite RAL 7016
Van Dyke Brown BS 08B29
Sargasso RAL 5003
Black BS 00E53
For more information, please visit the Tata Steel website.
TATA Steel Colorcoat® HPS 200 Ultra
White BS 00E55
Goosewing Grey BS 10A05
Hamlet RAL 9002
Merlin Grey BS 18B25
Anthracite RAL 7016
For more information, please visit the Tata Steel website.
TATA Steel Corus Colorcoat® PVDF
White RAL 9010
Alaska Grey RAL 7000
Silver RAL 9006
Oyster RAL 7035
Slate Grey RAL 7012
For more information, please visit the Tata Steel website.
Firestop 10 FAQs
In what environments can you use Firestop 10 panels?
Due to their superior fire ratings and non-combustibility, Firestop panels are especially suitable for high fire risk locations, such as bakeries, any area where cooking is prevalent or firewalls to comply with Building Regulations.
What joints can you have with Firestop panels?
Firestop panels can be installed using through fix joints.
What are the fire ratings?
Firestop panels can offer up to 120 minutes (2 hours) fire resistance to both insulation and integrity, but the configuration of the panel and the application type can affect this. When requesting a quote, please communicate with the sales team the fire resistance you require for the job.
What is the structural wall and ceiling maximum recommended span?
The maximum unsupported span for both wall and ceiling panels would be 7.5metres. The maximum structural span is up to 9.5metres, but please clarify your span/performance requirements with our sales team
